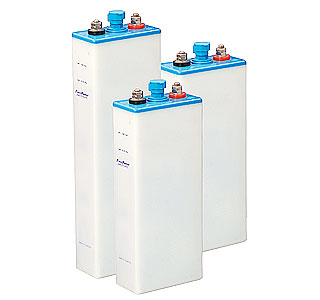

Traksiyon Tip Aküler
Voltage : 2V Capacity : 46AH to 630AH
Cycle Life: More than 1600 cycles up to 80% depth of discharge.

Benefits

  • Assembled in a high grade plastic container.
  • Tubular positive plates and pasted negative plates.
  • Longer life in cyclic use-more than 1600 cycles up to 80% depth of discharge.
  • Low energy costs.
  • Low water costs.
  • Avoidance of insufficient discharging and of overcharging.
  • Suitable for all weather conditions.

 Typical Applications

  • Forklift
  • Tow truck
  • Power trolley
  • Lifting platforms and other industrial traction application.

 Maintenance:

  • Allow the battery to cool down after every charging.
  • Top up the battery at the end of the charge cyclic with the charging on and allow the battery to gas freely so that the specific gravity becomes uniform in the cell. Never add water to a discharged battery
  • Keep the battery clean and dry. Check the terminal connectors for tightness.





Cell Type Nominal
Capacity (Ah)
Charging
Intensity(A)
Dimensions(mm/in) Weight
±4%(Kg)
Length Width Height Total Height Dry wet
5h 1h 0.5h Intial Finish mm in mm in mm in mm in Kg Lbs Kg Lbs
2FPD100 100 65 50 17 5 198 7.8 45 1.8 265 10.4 300 11.8 4.8 10.58 7.2 15.9
3FPD150 150 96 75 25 7 64 2.5 7.1 15.7 9.5 20.9
4FPD200 200 130 100 35 9 82 3.2 9.6 21.2 11.9 26.2
5FPD250 250 164 125 42 11 101 4 11.6 25.6 14.2 31.3
6FPD300 300 196 150 50 13 118 4.6 13.5 29.8 17 37.5
7FPD350 350 229 175 60 15 137 5.4 16 35.3 21 46.3
8FPD400 400 260 200 67 17 155 6.1 18.3 40.3 22.2 48.9
9FPD450 450 295 225 75 19 172 6.8 21 46.3 26.2 57.8
10FPD500 500 325 250 85 21 192 7.6 22.8 50.3 30 66.1
2FPD120 120 78 65 20 6 198 7.8 45 1.8 330 13 365 14.4 6.6 14.6 9.3 20.5
3FPD180 180 118 98 30 9 64 2.5 9.5 20.9 13.5 29.8
4FPD240 240 156 130 40 12 82 3.2 12.2 26.9 15.3 33.7
5FPD300 300 195 163 50 15 101 4 15 33.1 18.6 41
6FPD360 360 239 195 60 18 118 4.6 17.4 38.4 23.8 52.5
7FPD420 420 275 228 72 21 137 5.4 20.5 45.2 27.3 60.2
8FPD480 480 315 260 80 24 155 6.1 23 50.7 21.5 47.4
9FPD540 540 350 293 92 27 172 6.8 25.5 56.2 32.5 71.7
10FPD600 600 390 325 100 30 192 7.6 28 61.7 40.2 88.6
2FPD160 160 105 80 27 7 198 7.8 45 1.8 400 15.7 435 17.1 8 17.6 10.1 22.3
3FPD240 240 156 120 40 10 64 2.5 11.2 24.7 15 33.1
4FPD320 320 208 160 54 14 82 3.2 14.5 32 18.7 41.2
5FPD400 400 260 200 67 17 101 4 17.7 39 23 50.7
6FPD480 480 315 240 80 20 118 4.6 20.5 45.2 27 59.5
7FPD560 560 365 280 94 24 137 5.4 24 52.9 32 70.5
8FPD640 640 418 320 107 27 155 6.1 27.5 60.6 36 79.4
9FPD720 720 468 360 120 30 172 6.8 33 72.8 41 90.4
10FPD800 800 520 400 135 34 192 7.6 34.5 76.1 45.2 99.6
2FPD180 180 120 92 30 7 198 7.8 45 1.8 465 18.3 500 19.7 9.5 20.9 11.5 25.4
3FPD270 270 180 138 46 11 64 2.5 13 28.7 16.5 36.4
4FPD360 360 240 185 61 15 82 3.2 17 37.5 22.2 48.9
5FPD450 450 300 230 76 19 101 4 21 46.3 26.5 58.4
6FPD540 540 360 276 92 23 119 4.7 24 52.9 31.5 69.4
7FPD630 630 420 322 107 27 137 5.4 28 61.7 36.5 80.5
8FPD720 720 478 368 122 30 155 6.1 32.5 71.7 43.6 96.1
9FPD810 810 538 415 138 34 173 6.8 35.5 78.3 48 105.8
10FPD900 900 596 460 153 38 192 7.6 39.5 87.1 53 116.8
2FPD210 210 137 105 35 9 198 7.8 45 1.8 510 20.1 545 21.5 10.5 23.1 12.5 27.6
3FPD315 315 205 158 53 14 65 2.6 14.2 31.3 19.3 42.5
4FPD420 420 275 210 70 18 83 3.3 18.2 40.1 23.5 51.8
5FPD525 525 342 265 88 22 101 4 22 48.5 28.6 63.1
6FPD630 630 410 315 105 27 119 4.7 26.5 58.4 33.8 74.5
